gabatarwa ga samfurori:

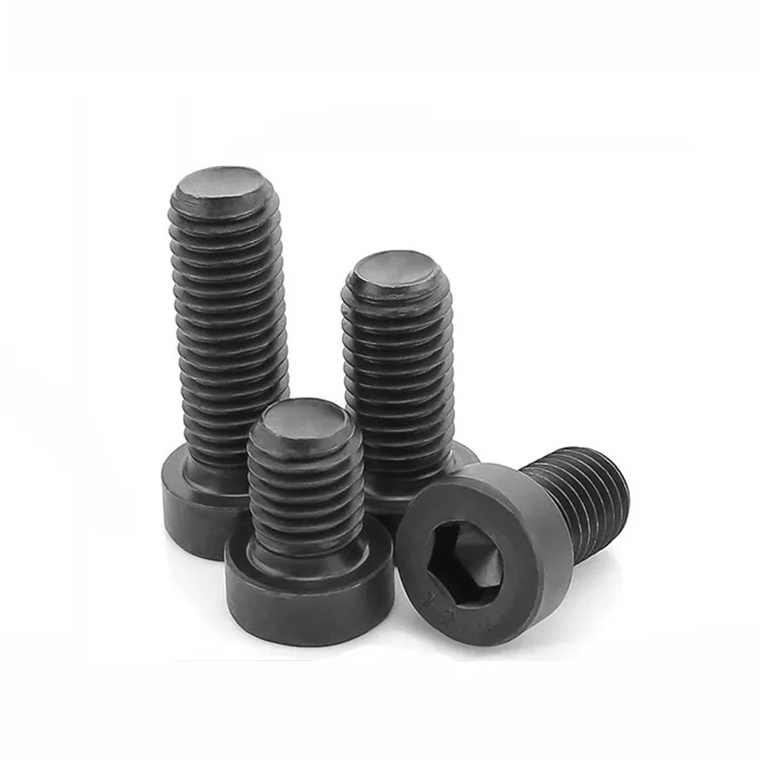

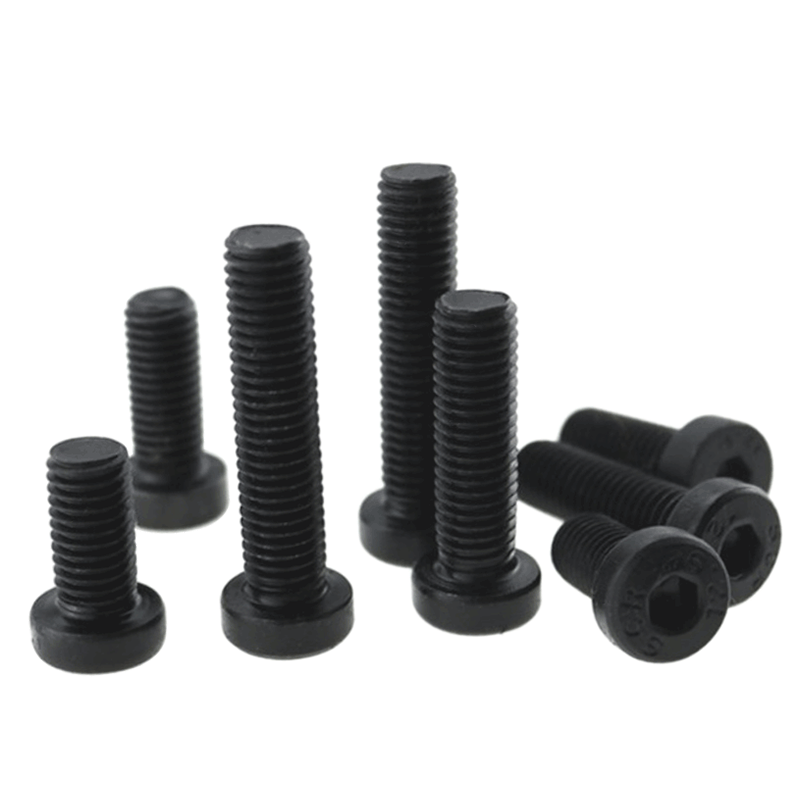

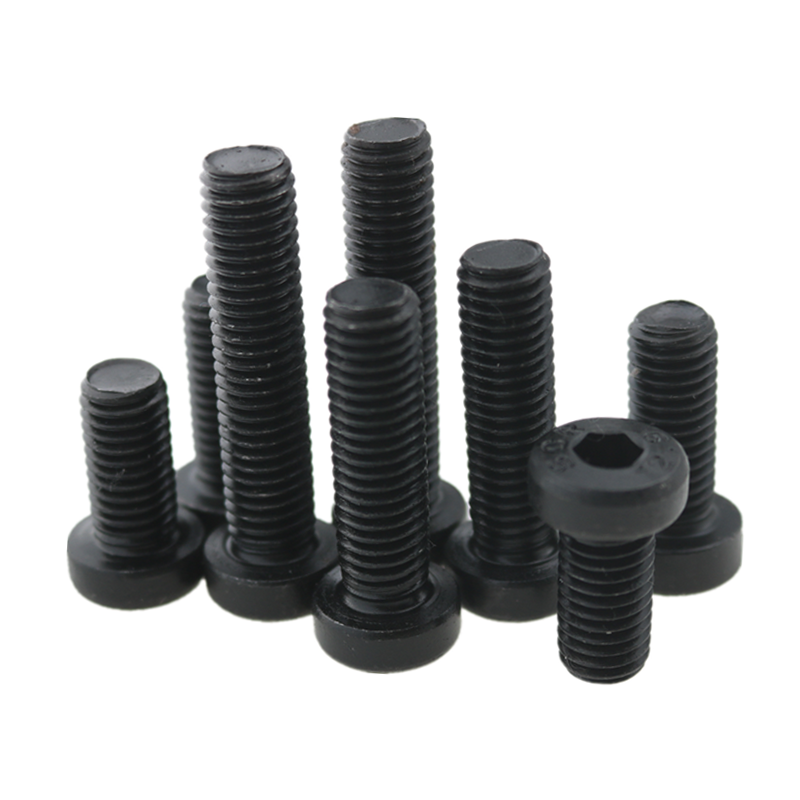

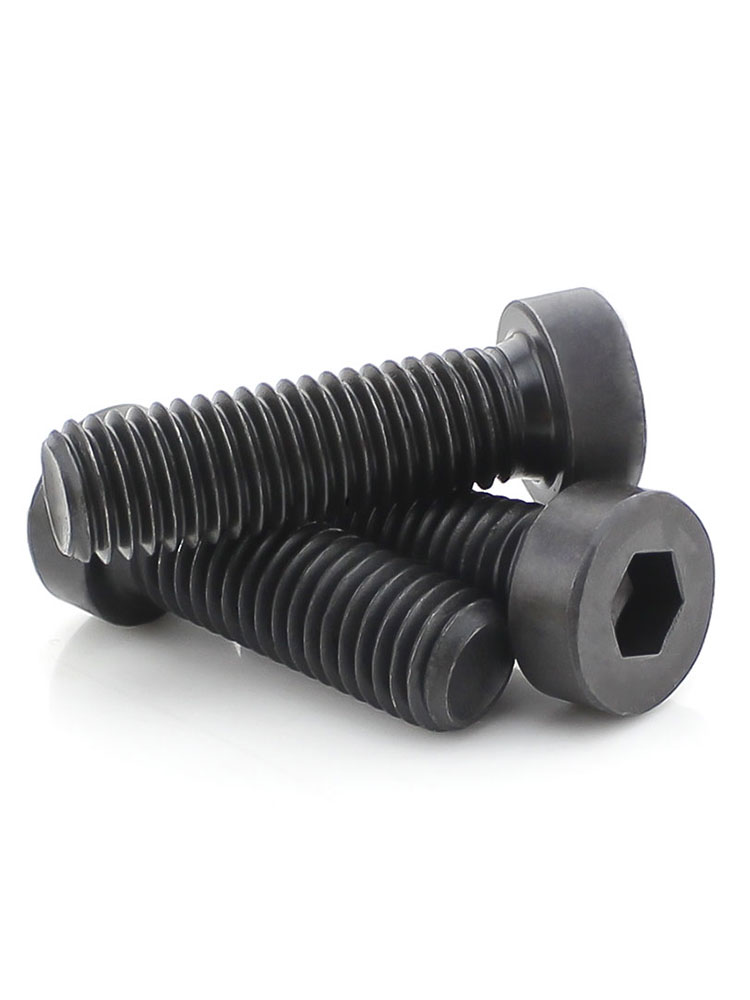

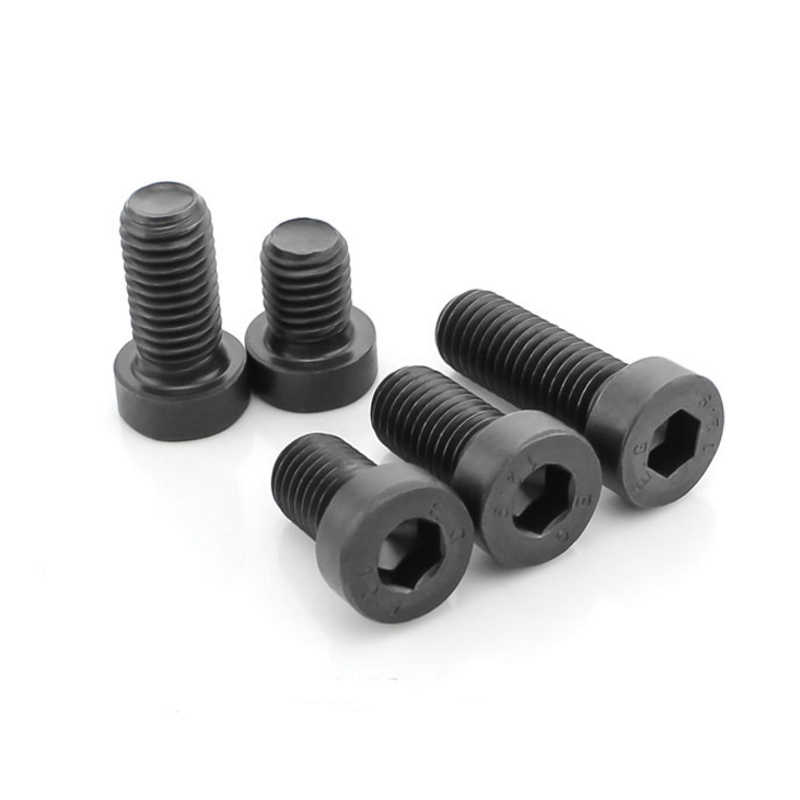

Black Oxide Hexagon Socket Low Thin Head Cap Bolts (DIN 7984) ba su da ƙanƙanta - na'urorin haɗe-haɗe tare da kwasfa na hex na ciki, suna nuna ƙirar kai siriri don adana sarari. Anyi daga carbon karfe (ƙarfin maki 4.8, 8.8, 10.9) ko ƙarfe ƙarfe (don ɗaukar nauyi mafi girma), murfin oxide na baƙar fata yana ba da juriya, kariyar tsatsa, da ƙarancin haske. Mai yarda da DIN 7984, sun zo cikin masu girma dabam daga M2 zuwa M16. Kan bakin ciki yana ba da damar gogewa ko kusa - shigar da ruwa, yana mai da su manufa don na'urorin lantarki (masu hawan keke), injunan madaidaici (jigs na kayan aiki), kayan ciki na mota (bankunan datti), da na'urorin likitanci (ƙananan bayanan bayanan martaba), inda ingancin sarari da amintaccen ɗaure ke da mahimmanci.
Umarnin don amfani:
Shigarwa tare da madaidaicin magudanar soket ɗin hex, ƙara matsawa zuwa jujjuyawar shawarar da aka ba da shawarar (kauce wa kan- matsa don hana nakasar kai). Don kulawa: Tsaftace akai-akai tare da busasshen zane don kiyaye baƙar oxide Layer. Gyara kura-kurai tare da fenti anti-tsatsa da sauri. Guji hulɗa na dogon lokaci tare da acid mai ƙarfi wanda zai iya lalata rufin. Sauya kusoshi idan an sa kai ko zaren.

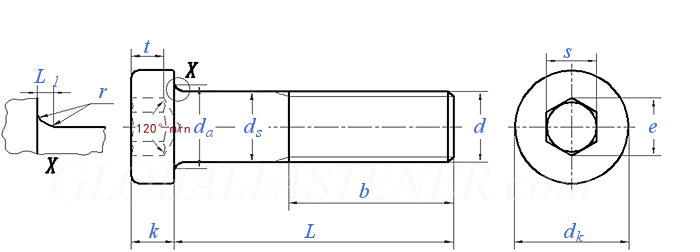

| Girman Zaren | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | |
| d | |||||||||||
| P | Fita | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| b | L≤125 | 12 | 14 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 |
| 125 ml≤200 | / | / | / | / | 28 | 32 | 36 | 44 | 52 | 60 | |
| L ＞200 | / | / | / | / | / | / | / | 57 | 65 | 73 | |
| da | max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 17.7 | 22.4 | 26.4 |
| dk | max= girman girman | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | 24 | 30 | 36 |
| min | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 23.67 | 29.67 | 35.61 | |
| ds | max= girman girman | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 24 |
| min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 15.73 | 19.67 | 23.67 | |
| e | min | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 8.01 | 9.15 | 13.72 | 16 | 19.44 |
| L1 | max | 0.51 | 0.6 | 0.6 | 0.68 | 1.02 | 1.02 | 1.87 | 1.87 | 2.04 | 2.04 |
| k | max= girman girman | 2 | 2.8 | 3.5 | 4 | 5 | 6 | 7 | 9 | 11 | 13 |
| min | 1.86 | 2.66 | 3.32 | 3.82 | 4.82 | 5.82 | 6.78 | 8.78 | 10.73 | 12.73 | |
| r | min | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.8 | 0.8 |
| s | Girman Suna | 2 | 2.5 | 3 | 4 | 5 | 7 | 8 | 12 | 14 | 17 |
| max | 2.1 | 2.6 | 3.1 | 4.12 | 5.14 | 7.175 | 8.175 | 12.212 | 14.212 | 17.23 | |
| min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 7.025 | 8.025 | 12.032 | 14.032 | 17.05 | |
| t | Girman Suna | 1.5 | 2.3 | 2.7 | 3 | 3.8 | 4.5 | 5 | 5.5 | 7.5 | 8 |
| max | 1.62 | 2.42 | 2.82 | 3.12 | 3.95 | 4.65 | 5.15 | 5.65 | 7.68 | 8.18 | |
| min | 1.38 | 2.18 | 2.58 | 2.88 | 3.65 | 4.35 | 4.85 | 5.35 | 7.32 | 7.82 | |
| Weight na kowane 1000 karfe kayayyakin (≈kg) | - | - | - | - | - | - | - | - | - | - | |
| Tsawon Zaren b | - | - | - | - | - | - | - | - | - | - | |
Hebei Duojia Metal Products Co., Ltd. da aka sani da Yonghong Expansion Screw Factory. Yana da fiye da shekaru 25 na ƙwararrun ƙwararrun masana'anta. Ma'aikatar tana cikin Tushen Masana'antu na Standard Room na China - gundumar Yongnan, birnin Handan. Yana gudanar da samar da kan layi da kan layi da kuma kera na'urorin haɗi da kuma kasuwancin sabis na tallace-tallace na tsayawa ɗaya.
Ma'aikatar tana da fadin fili sama da murabba'in murabba'in 5,000, kuma ma'ajin ya kunshi fili fiye da murabba'in murabba'in 2,000. A cikin 2022, kamfanin ya aiwatar da haɓaka masana'antu, daidaita tsarin samarwa na masana'anta, haɓaka ƙarfin ajiya, haɓaka ƙarfin samar da aminci, da aiwatar da matakan kare muhalli. Masana'antar ta sami kyakkyawan yanayin samar da kore da yanayin muhalli.
Kamfanin yana da injunan latsa sanyi, injinan buga tambari, injin buɗaɗo, injin zare, injinan ƙirƙira, na'urorin bazara, injinan crimping, da na'urorin walda. Babban samfuransa jerin sukulan faɗaɗawa waɗanda aka sani da “hawan bango”.
Hakanan yana samar da samfuran ƙugiya mai siffa ta musamman kamar itacen haƙorin walda na ido na idon tumaki da injin haƙorin tumaki na ido. Bugu da kari, kamfanin ya fadada sabbin nau'ikan samfura daga karshen 2024. Yana mai da hankali kan samfuran da aka riga aka binne don masana'antar gini.
Kamfanin yana da ƙwararrun ƙungiyar tallace-tallace da ƙwararrun ƙungiyar masu bin diddigi don kiyaye samfuran ku. Kamfanin yana ba da garantin ingancin samfuran da yake bayarwa kuma yana iya gudanar da bincike akan maki. Idan akwai wasu matsaloli, kamfani na iya ba da sabis na ƙwararrun bayan-tallace-tallace.
Kasashen da muke fitarwa sun hada da Rasha, Koriya ta Kudu, Burtaniya, Faransa, Jamus, Italiya, Kanada, Mexico, Brazil, Argentina, Chile, Australia, Indonesia, Thailand, Singapore, Saudi Arabia, Syria, Masar, Tanzania.Kenya da sauran kasashe. Za a yada samfuranmu a duk faɗin duniya!
ME YASA ZABE MU?
1.As a factory-direct upplier, mu kawar da middleman margis bayar da ku mafi m farashin ga high quality- fasteners.
2.our factory wuce da ISO 9001 da AAA takardar shaida .mu da taurin gwaji da gwajin tutiya shafi kauri ga galvanized kayayyakin.
3.with full contrl kan samarwa da dabaru, muna bada garantin isar da kan lokaci har ma da umarni na gaggawa.
4.our aikin injiniya tawagar iya siffanta faseners daga prototype zuwa taro samar, ciki har da musamman thread kayayyaki da anti-lalata coatings.
5.From carbon karfe hex kusoshi zuwa high-tensile anga kusoshi, mu samar da daya-tasha bayani ga duk fastener bukatun.
6.Idan wani lahani aka samu, za mu reship maye gurbinsu a cikin 3weeks na mu kudin.
