DIN 914 Hexagon Socket Cone Point Saita Screws - Abubuwan Makullin Shaft

DIN 914 Hexagon Socket Cone Point Saita Screws - Makullan Shaft Abubuwan da Aka Fitar da Hoto

Takaitaccen Bayani:

Samfurin sunan: cone point set screws DIN 914

Wurin Asalin: Hebei, China

Brand Name: Duojia

Maganin saman: baki

Ƙarshe: Black Oxide Coating

Girman: M1.4-M24

Material: Karfe Karfe

Daraja:4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 da dai sauransu.

Tsarin aunawa: Metric

Aikace-aikace: Babban Masana'antu, Babban Masana'antu

Takaddun shaida:ISO9001 ISO14001 ISO45001 SGS

Kunshin: Karamin Fakiti+ Karton+Pallet/Jaka/Akwatin Tare da Pallet

Misali: Akwai

Yawan Oda Min.Guda 100/Kashi

Ikon bayarwa:10000 Pieces/Perces per month

Farashin FOB:US $0.5 - 9,999 / yanki

bayarwa: 14-30days akan qty

biya: t/t/lc

iya aiki: 500 ton a kowane wata

Aika mana imel

Cikakken Bayani

Tags samfurin

gabatarwa ga samfurori:

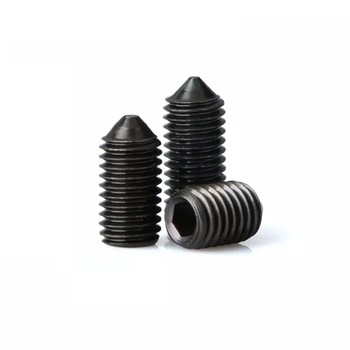

Saitin Socket Socket Screws tare da Mazugi (misali, DIN 914, ISO 4027 ma'auni): Waɗannan haɗe-haɗe ne na cylindrical da ke nuna mashin soket na hexagon (don shigarwa tare da maƙallan ciki - hex wrench) da tip mai kaifi, mazugi. Gina daga kayan kamar 45H carbon karfe (yawanci zinc - plated ko baki oxide - mai rufi ga tsatsa juriya) ko bakin karfe (A2, A4) (manufa don amfani a cikin m muhallin), suna bayar da wani kudin - tasiri da kuma abin dogara bayani ga axial kulle.

Tushen mazugi-mai siffa yana danna da ƙarfi akan rami mai ƙima a cikin shaft (ko ɓangaren mating), yana hana abubuwa kamar gears, bearings, da couplings daga zamewa axially. Ana amfani da su sosai a cikin injina, tsarin kera motoci, na'urorin lantarki, da ingantattun kayan aiki, kuma ana samun su a cikin girman zaren da ke jere daga M1.4 zuwa M24 (don dacewa da diamita daban-daban).

Umarnin don amfani:

Set Set Set Screws tare da Mazugi Mazugi sune masu ɗaure a cikin ramukan zaren ramuka don kulle abubuwan kamar gears da bearings axially. Kusurwar tip ɗin mazugi (misali, 90° ko 120°) yayi daidai da ramin countersunk akan shaft don amintaccen lamba. Lokacin shigarwa, yi amfani da maɓallin Allen don dunƙule saitin dunƙule cikin rami mai zaren shaft har sai titin mazugi ya latsa da ƙarfi a kan ramin (kauce wa matsi don hana lalacewar zaren ko nakasar shaft).

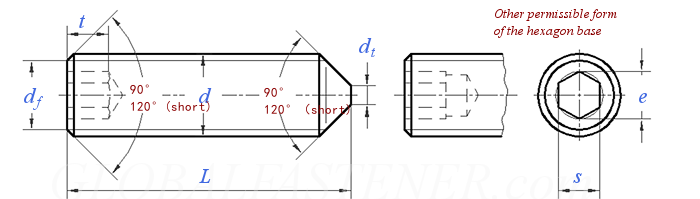

Zaren dunƙulewa			M1.6	M2	M2.5	M3	M4	M6	M8	M10	M12	M16	M20
P	Fita		0.35	0.4	0.45	0.5	0.7	1	1.25	1.5	1.75	2	2.5
dt	max		0.4	0.5	0.65	0.75	1	1.5	2	2.5	3	4	5
e	min		0.809	1.011	1.454	1.733	2.303	3.443	4.583	5.723	6.863	9.149	11.429
s	Girman Suna		0.7	0.9	1.3	1.5	2	3	4	5	6	8	10
	max		0.724	0.913	1.3	1.58	2.08	3.08	4.095	5.14	6.14	8.175	10.175
	min		0.71	0.887	1.275	1.52	2.02	3.02	4.02	5.02	6.02	8.025	10.025
t	min	gajere	0.7	0.8	1.2	1.2	1.5	2	3	4	4.8	6.4	8
t	min	dogo	1.5	1.7	2	2	2.5	3.5	5	6	8	10	12
L0 ①	Girman Suna		2.5	3	3	4	5	6	8	10	12	16	20

Hebei Duojia Metal Products Co., Ltd. da aka sani da Yonghong Expansion Screw Factory. Yana da fiye da shekaru 25 na ƙwararrun ƙwararrun masana'anta. Ma'aikatar tana cikin Tushen Masana'antu na Standard Room na China - gundumar Yongnan, birnin Handan. Yana gudanar da samar da kan layi da kan layi da kuma kera na'urorin haɗi da kuma kasuwancin sabis na tallace-tallace na tsayawa ɗaya.

Ma'aikatar tana da fadin fili sama da murabba'in murabba'in 5,000, kuma ma'ajin ya kunshi fili fiye da murabba'in murabba'in 2,000. A cikin 2022, kamfanin ya aiwatar da haɓaka masana'antu, daidaita tsarin samarwa na masana'anta, haɓaka ƙarfin ajiya, haɓaka ƙarfin samar da aminci, da aiwatar da matakan kare muhalli. Masana'antar ta sami kyakkyawan yanayin samar da kore da yanayin muhalli.

Kamfanin yana da injunan latsa sanyi, injinan buga tambari, injin buɗaɗo, injin zare, injinan ƙirƙira, na'urorin bazara, injinan crimping, da na'urorin walda. Babban samfuransa jerin sukulan faɗaɗawa waɗanda aka sani da “hawan bango”.

Hakanan yana samar da samfuran ƙugiya mai siffa ta musamman kamar itacen haƙorin walda na ido na idon tumaki da injin haƙorin tumaki na ido. Bugu da kari, kamfanin ya fadada sabbin nau'ikan samfura daga karshen 2024. Yana mai da hankali kan samfuran da aka riga aka binne don masana'antar gini.

Kamfanin yana da ƙwararrun ƙungiyar tallace-tallace da ƙwararrun ƙungiyar masu bin diddigi don kiyaye samfuran ku. Kamfanin yana ba da garantin ingancin samfuran da yake bayarwa kuma yana iya gudanar da bincike akan maki. Idan akwai wasu matsaloli, kamfani na iya ba da sabis na ƙwararrun bayan-tallace-tallace.

Kasashen da muke fitarwa sun hada da Rasha, Koriya ta Kudu, Burtaniya, Faransa, Jamus, Italiya, Kanada, Mexico, Brazil, Argentina, Chile, Australia, Indonesia, Thailand, Singapore, Saudi Arabia, Syria, Masar, Tanzania.Kenya da sauran kasashe. Za a yada samfuranmu a duk faɗin duniya!

ME YASA ZABE MU?

1.As a factory-direct upplier, mu kawar da middleman margis bayar da ku mafi m farashin ga high quality- fasteners.
2.our factory wuce da ISO 9001 da AAA takardar shaida .mu da taurin gwaji da gwajin tutiya shafi kauri ga galvanized kayayyakin.
3.with full contrl kan samarwa da dabaru, muna bada garantin isar da kan lokaci har ma da umarni na gaggawa.
4.our aikin injiniya tawagar iya siffanta faseners daga prototype zuwa taro samar, ciki har da musamman thread kayayyaki da anti-lalata coatings.
5.From carbon karfe hex kusoshi zuwa high-tensile anga kusoshi, mu samar da daya-tasha bayani ga duk fastener bukatun.
6.Idan wani lahani aka samu, za mu reship maye gurbinsu a cikin 3weeks na mu kudin.
