gabatarwa ga samfurori:

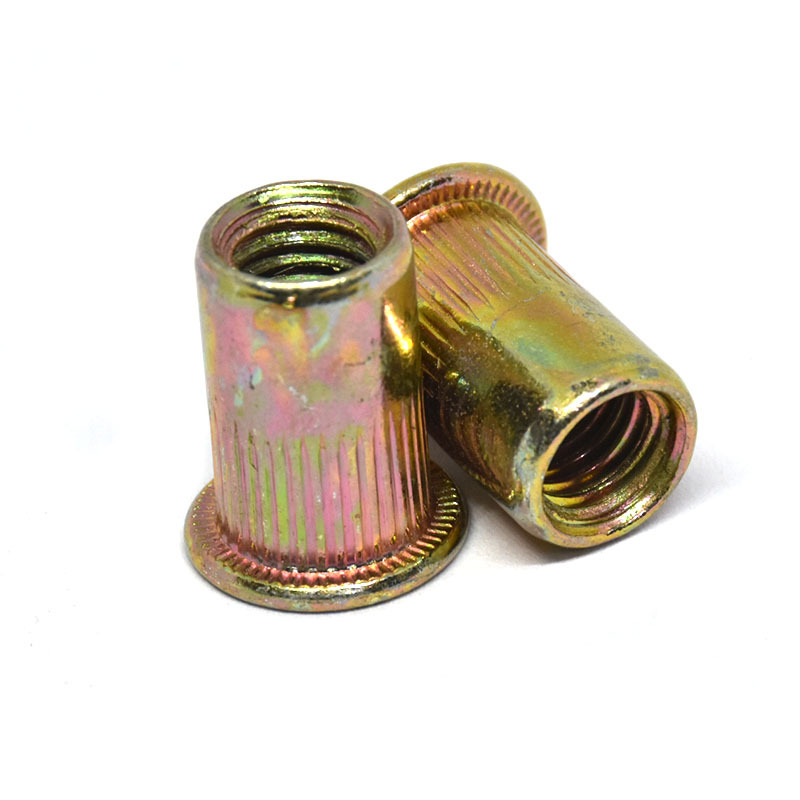

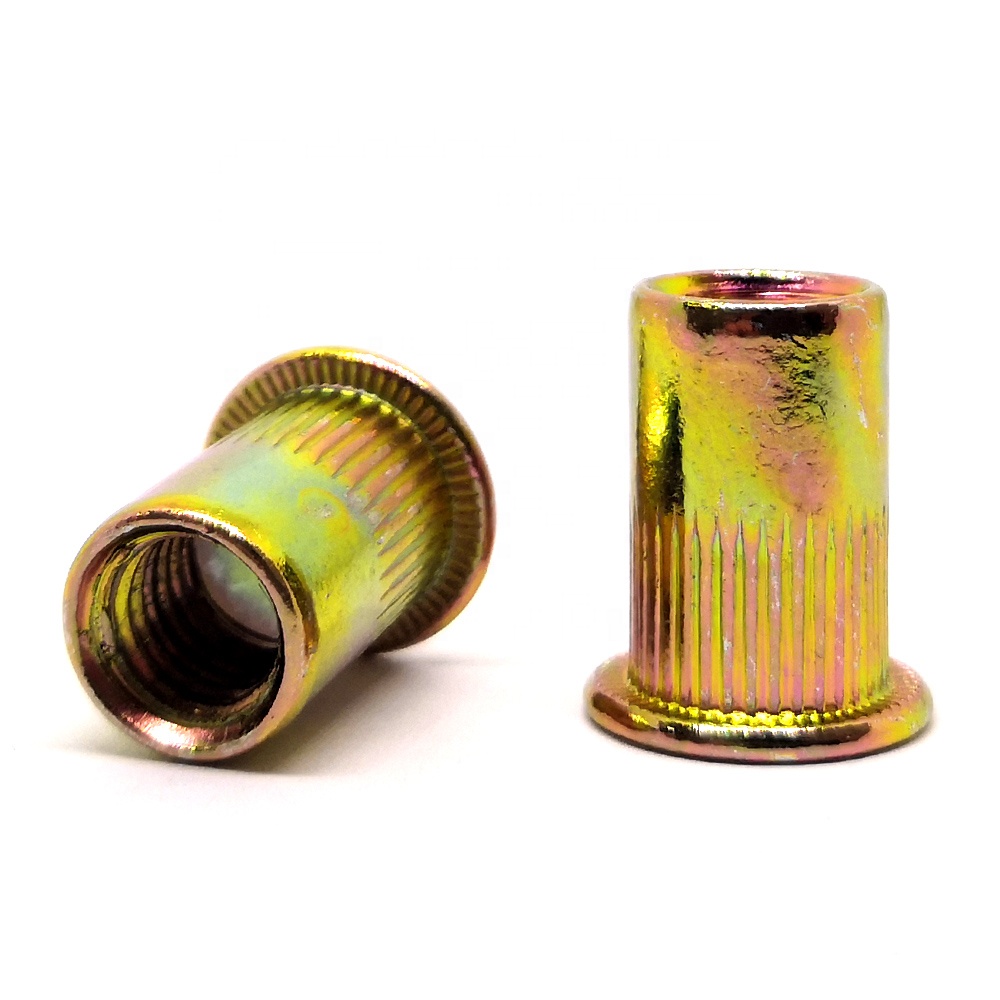

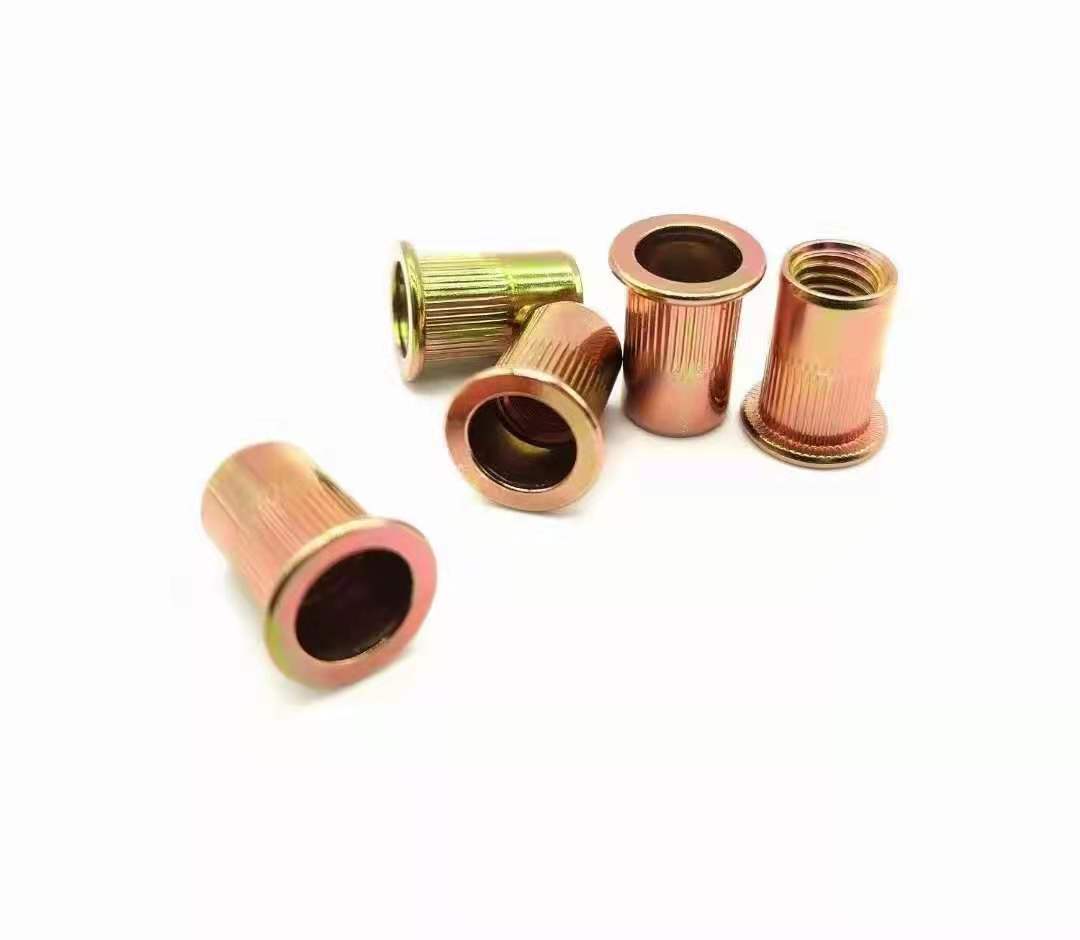

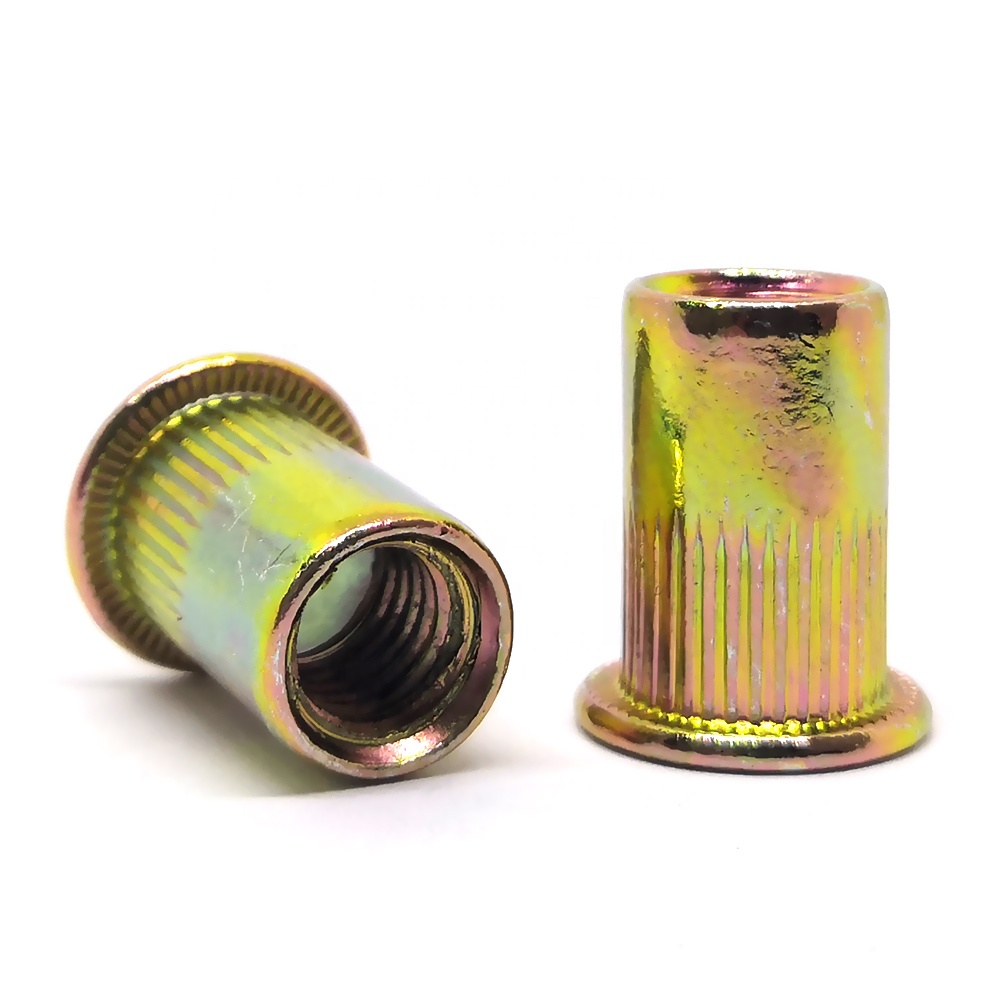

Galvanized Zinc Plated DIN7340 Knurled Makafi Rivet Kwayoyi sune masu ɗaure siliki tare da bangon waje mai dunƙule da zaren ciki. The knurling kara habaka riko a kan bakin ciki workpieces (kamar sheet karfe, square shambura), yayin da galvanized tutiya plating tsayayya da tsatsa. Anyi daga karfe carbon (farashi - mai tasiri don amfanin gabaɗaya) ko bakin karfe (lalata - hujja don yanayin damp), suna ba da damar riveing makafi - babu baya - samun damar gefen da ake buƙata. Bayan ma'auni na DIN7340, suna zuwa cikin ma'auni masu girma dabam (M3-M12) kuma ana amfani da su don ƙara zaren ciki zuwa kayan bakin ciki a cikin mota (tushen lasisin lasisi), kayan daki (taron firam ɗin ƙarfe), da gini (hasken haɗin tsarin aiki).
Umarnin don amfani:
Don girka, tono rami a cikin kayan aikin da ya dace da diamita na goro. Saka goro a cikin rami, sannan yi amfani da kayan aiki na rivet (manual/lantarki) don cire shi, sanya bangon dunƙule a cikin kayan. Tabbatar cewa kayan aikin sun yi daidai da girman goro (misali, goro na M6 yana buƙatar M6 - kayan aiki masu jituwa). Duba kullun galvanized shafi don karce (gyara tare da fenti anti-tsatsa) da kuma ƙwanƙwasa don lalacewa (maye gurbin idan zamewar ta faru).

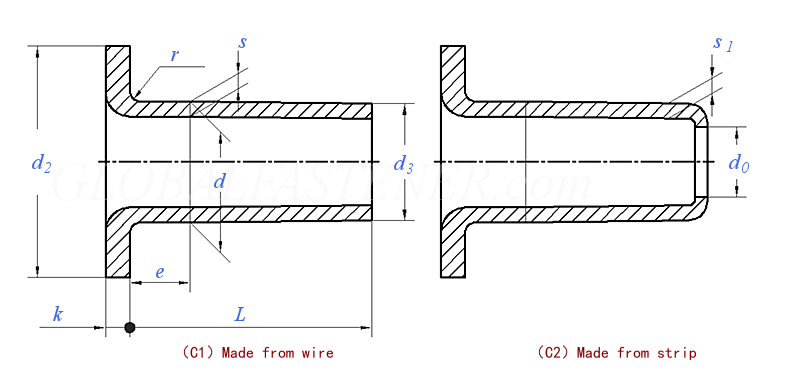

| Diamita na Suna | 3 | 4 | 5 | 6 | 8 | 10 | |
| d | |||||||
| d | max = girman girman (h13) | 3 | 4 | 5 | 6 | 8 | 10 |
| min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | |
| d2 | max= girman girman | 5.5 | 7.5 | 9.5 | 11.5 | 15.5 | 18 |
| min | 5.2 | 6.92 | 8.92 | 10.8 | 14.8 | 17.3 | |
| d3 | min | 2.85 | 3.8 | 4.8 | 5.8 | 7.75 | 9.75 |
| d0 | max= girman girman | 1.66 | 2.62 | 3.42 | 4.12 | 5.18 | 7.18 |
| min | 1.26 | 2.22 | 3.02 | 3.72 | 4.78 | 6.78 | |
| e | max | 1.5 | 2 | 2.5 | 3 | 4 | 5 |
| k | max | 0.8 | 1 | 1 | 1.2 | 1.2 | 1.4 |
| min | 0.6 | 0.8 | 0.8 | 1 | 1 | 1.2 | |
| r | max | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.6 |
| s | Girman Suna | 0.5 | 0.5 | 0.6 | 0.75 | 1.2 | 1.2 |
| max | 0.6 | 0.6 | 0.7 | 0.85 | 1.3 | 1.3 | |
| min | 0.4 | 0.4 | 0.5 | 0.65 | 1.1 | 1.1 | |
| s1 | min | 0.4 | 0.4 | 0.5 | 0.6 | 1 | 1 |
| Weight na kowane 1000 karfe kayayyakin (≈kg) | - | - | - | - | - | - | |
Hebei Duojia Metal Products Co., Ltd. da aka sani da Yonghong Expansion Screw Factory. Yana da fiye da shekaru 25 na ƙwararrun ƙwararrun masana'anta. Ma'aikatar tana cikin Tushen Masana'antu na Standard Room na China - gundumar Yongnan, birnin Handan. Yana gudanar da samar da kan layi da kan layi da kuma kera na'urorin haɗi da kuma kasuwancin sabis na tallace-tallace na tsayawa ɗaya.
Ma'aikatar tana da fadin fili sama da murabba'in murabba'in 5,000, kuma ma'ajin ya kunshi fili fiye da murabba'in murabba'in 2,000. A cikin 2022, kamfanin ya aiwatar da haɓaka masana'antu, daidaita tsarin samarwa na masana'anta, haɓaka ƙarfin ajiya, haɓaka ƙarfin samar da aminci, da aiwatar da matakan kare muhalli. Masana'antar ta sami kyakkyawan yanayin samar da kore da yanayin muhalli.
Kamfanin yana da injunan latsa sanyi, injinan buga tambari, injin buɗaɗo, injin zare, injinan ƙirƙira, na'urorin bazara, injinan crimping, da na'urorin walda. Babban samfuransa jerin sukulan faɗaɗawa waɗanda aka sani da “hawan bango”.
Hakanan yana samar da samfuran ƙugiya mai siffa ta musamman kamar itacen haƙorin walda na ido na idon tumaki da injin haƙorin tumaki na ido. Bugu da kari, kamfanin ya fadada sabbin nau'ikan samfura daga karshen 2024. Yana mai da hankali kan samfuran da aka riga aka binne don masana'antar gini.
Kamfanin yana da ƙwararrun ƙungiyar tallace-tallace da ƙwararrun ƙungiyar masu bin diddigi don kiyaye samfuran ku. Kamfanin yana ba da garantin ingancin samfuran da yake bayarwa kuma yana iya gudanar da bincike akan maki. Idan akwai wasu matsaloli, kamfani na iya ba da sabis na ƙwararrun bayan-tallace-tallace.
Kasashen da muke fitarwa sun hada da Rasha, Koriya ta Kudu, Burtaniya, Faransa, Jamus, Italiya, Kanada, Mexico, Brazil, Argentina, Chile, Australia, Indonesia, Thailand, Singapore, Saudi Arabia, Syria, Masar, Tanzania.Kenya da sauran kasashe. Za a yada samfuranmu a duk faɗin duniya!
ME YASA ZABE MU?
1.As a factory-direct upplier, mu kawar da middleman margis bayar da ku mafi m farashin ga high quality- fasteners.
2.our factory wuce da ISO 9001 da AAA takardar shaida .mu da taurin gwaji da gwajin tutiya shafi kauri ga galvanized kayayyakin.
3.with full contrl kan samarwa da dabaru, muna bada garantin isar da kan lokaci har ma da umarni na gaggawa.
4.our aikin injiniya tawagar iya siffanta faseners daga prototype zuwa taro samar, ciki har da musamman thread kayayyaki da anti-lalata coatings.
5.From carbon karfe hex kusoshi zuwa high-tensile anga kusoshi, mu samar da daya-tasha bayani ga duk fastener bukatun.
6.Idan wani lahani aka samu, za mu reship maye gurbinsu a cikin 3weeks na mu kudin.
